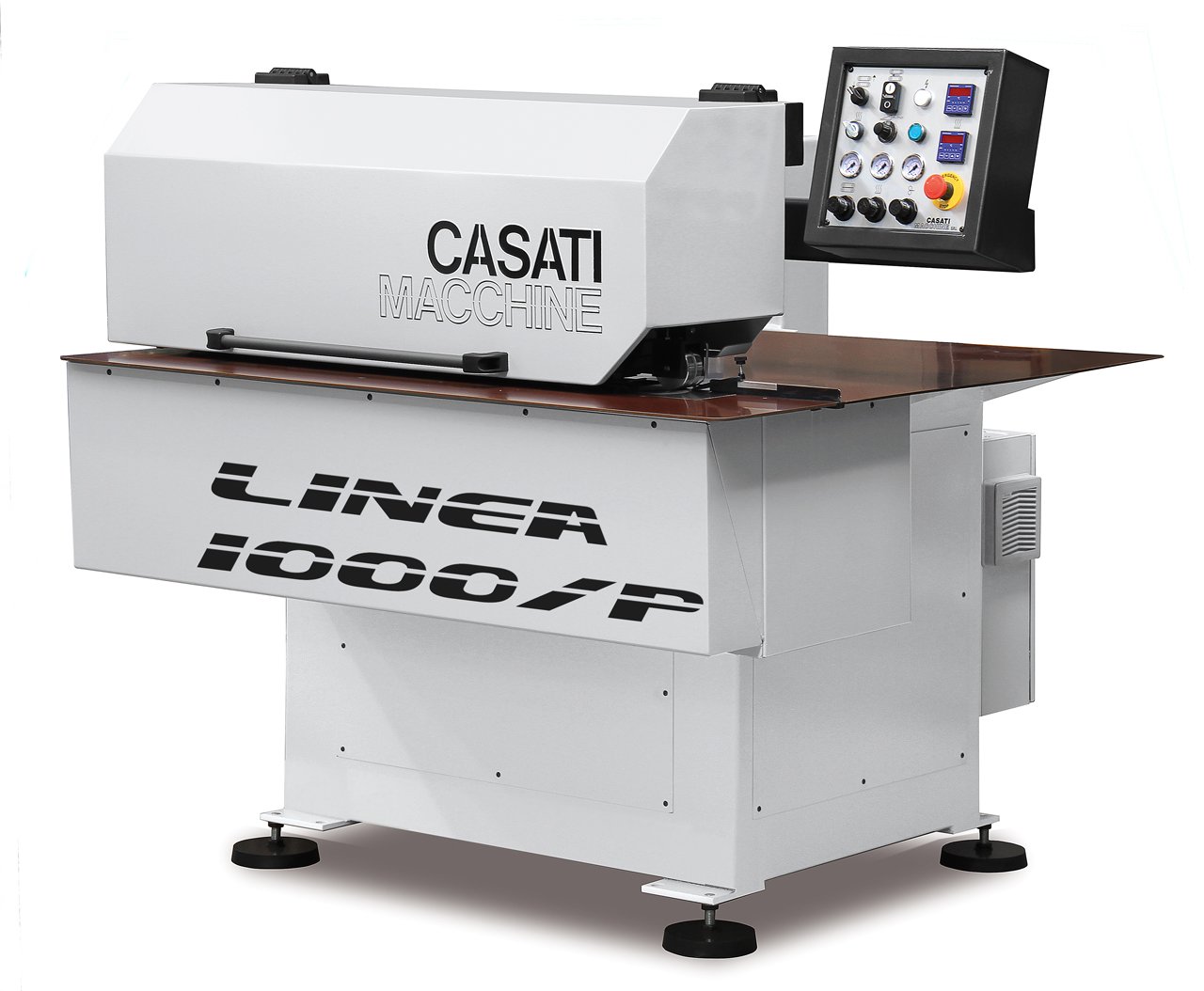

Linea1000PLUSDescriptionDescription
This machine permits the longitudinal splicing of veneer sheets thanks to a gluing unit placed at the entrance. The sheets to be spliced are inserted into the machine, which automatically drags them and at the same time presses them together slightly.
Contemporaneously the veneers pass through a heated zone activating the gluing application. Accurate adjustment devices permit the best working mode according to the different conditions of speed, temperature, glue, density and thickness of the wooden materials.
FeaturesFeatures
- The sturdy construction ensures constant performance and reliability over time
- The transport of the sheets takes place by means of a precision chain with tracks in special plastic material with low heat conductivity.
- The speed is continuously adjustable within the minimum and maximum values
- The control panel is complete with pressure gauges and displays that allow you to precisely control the main processing parameters. Adjustment devices allow accurate adjustments to achieve optimal operation under all conditions.
- The glueing unit is sliding longitudinally, with a roll contacting the pack, thus laying down a uniform glue coating on the edge. The extraction of the group for cleaning is very simple.
Accessories Accessories
Accessory on request
Cooling unit to preserve the characteristics of the glue in the glue tray for longer.
Tecnical featuresTecnical features
| Principali caratteristiche tecniche Main technical features | LINEA 1000 PLUS | |
|---|---|---|
| Sbraccio utile Throat depth | mm | 1000 |
| Spessore impiallacciatura (appross.) Veneer thickness (approx.) | mm | 0,4 ÷ 1,5 |
| Lunghezza min. impiallacciatura (appross.) Min. length of veneer (approx.) | mm | 350 |
| Larghezza impiallacciatura da Width of veneer sheets from | mm | 45 |
| Velocità (appross.) Feed speed (approx) | m/min. | 10 ÷ 30 |
| Lunghezza area di riscaldamento Heated zone length | mm | 1000 |
| Colla per pre-incollaggio Glue type for pre-glueing | Urea + PVA | |
| Colla per incollatore integrato (*) Glue type for integrated glueing (*) | Urea + PVA | |
| Carico elettrico collegato (appross.) Total connected load (approx.) | kVA | 3,70 |
| Consumo aria compressa Compressed air consumption | NI/min | 5 |
| Pressione aria compressa Compressed air operating pressure | bar | 6 ÷ 8 |
| Ingombro Overall sizes | mm | 1600x1600x1500 |
| (*) per LINEA 1250 PLUS (*) for LINEA 1250 PLUS only |
||
